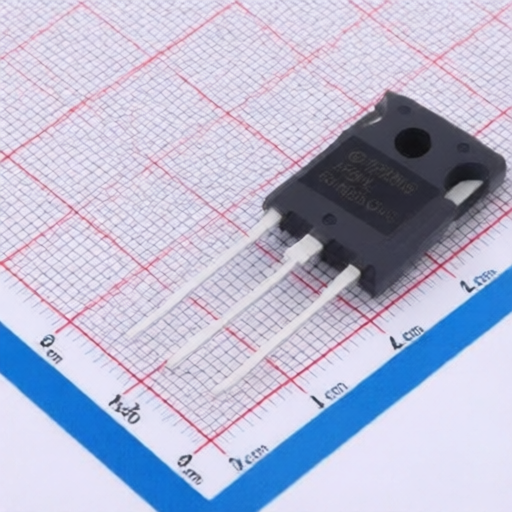

onsemi AFGHL50T65SQDC
Manufacturer:
onsemi
Mfr. Part #:
AFGHL50T65SQDC
Package:
TO-247-3L
Customer #:
Key Attributes:
IGBT 650V 100A TO-247-3L
Description:
IGBT FS (Field Stop) 650V 100A 238W Through Hole TO-247-3L
Datasheet:
onsemi AFGHL50T65SQDC
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
89.6ns
Pd - Power Dissipation:
238W
Td(on):
17.6ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
9pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.4V@50mA
Gate Charge(Qg):
94nC@15V
Operating Temperature:
-55℃~+175℃@(Tj)
Switching Energy(Eoff):
96uJ
Turn-On Energy (Eon):
131uJ
Input Capacitance(Cies):
3.098nF
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
265pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 450 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
