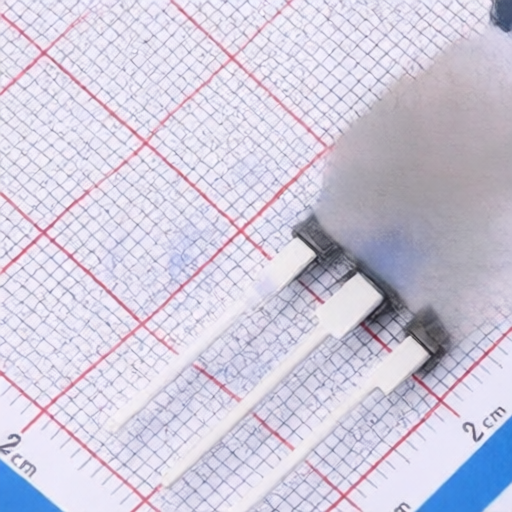

onsemi AFGY120T65SPD
Manufacturer:
onsemi
Mfr. Part #:
AFGY120T65SPD
Package:
TO-247-3
Customer #:
Key Attributes:
IGBT 650V 160A TO-247-3
Description:
IGBT FS (Field Stop) 650V 160A 714W Through Hole TO-247-3
Datasheet:
onsemi AFGY120T65SPD
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
80ns
Pd - Power Dissipation:
714W
Td(on):
40ns
Collector-Emitter Breakdown Voltage (Vces):
650V
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.05V@15V,120A
Operating Temperature:
-55℃~+175℃@(Tj)
Gate Charge(Qg):
125nC
Reverse Recovery Time(trr):
107ns
Switching Energy(Eoff):
3.8mJ
Turn-On Energy (Eon):
6.6mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
