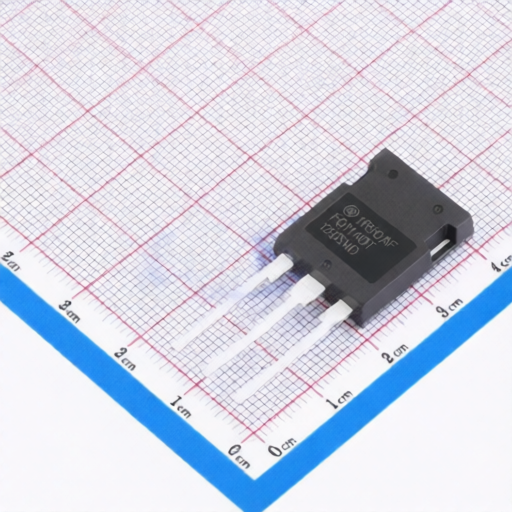

onsemi FGY140T120SWD
Manufacturer:
onsemi
Mfr. Part #:
FGY140T120SWD
Package:
TO-247-3LD
Customer #:
Key Attributes:
IGBT 1.2kV 280A TO-247-3LD
Description:
IGBT 1.2kV 280A 1153W Through Hole TO-247-3LD
Datasheet:
onsemi FGY140T120SWD
Products Specifications
Manufacturer:
Package:
TO-247-3LD
Td(off):
249.6ns
Pd - Power Dissipation:
1.153kW
Td(on):
55.2ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
13.395nF@30V
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.6V@140mA
Gate Charge(Qg):
415.4nC@140A,15V
Reverse Recovery Time(trr):
219.4ns
Switching Energy(Eoff):
2.3mJ
Turn-On Energy (Eon):
4.7mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
