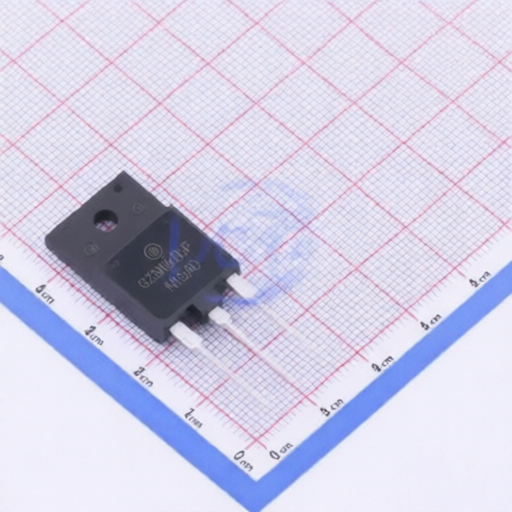

onsemi SGF23N60UFTU
Manufacturer:
onsemi
Mfr. Part #:
SGF23N60UFTU
Package:
TO-3PF
Customer #:
Key Attributes:
600V PT IGBT
Description:
75W 600V PT (Punch-Through) TO-3PF Single IGBTs RoHS
Datasheet:
onsemi SGF23N60UFTU
Products Specifications
Manufacturer:
Package:
TO-3PF
Pd - Power Dissipation:
75W
Td(off):
60ns
Td(on):
17ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
25pF
Input Capacitance(Cies):
720pF
IGBT Type:
PT (Punch-Through)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@12mA
Operating Temperature:
-55℃~+150℃
Output Capacitance(Coes):
100pF
Switching Energy(Eoff):
135uJ
Turn-On Energy (Eon):
115uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
