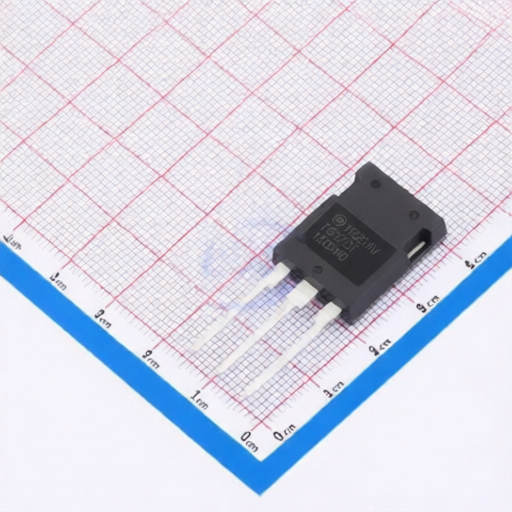

onsemi FGY75T120SWD
Manufacturer:
onsemi
Mfr. Part #:
FGY75T120SWD
Package:
TO-247-3
Customer #:
Key Attributes:
N-Channel, Field Stop Vll (FS7), 1200V IGBT
Description:
714W 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi FGY75T120SWD
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
171ns
Pd - Power Dissipation:
714W
Td(on):
42ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
29.6pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.6V@75mA
Gate Charge(Qg):
214nC@15V
Operating Temperature:
-55℃~+175℃
Reverse Recovery Time(trr):
204ns
Switching Energy(Eoff):
2.32mJ
Turn-On Energy (Eon):
5mJ
Input Capacitance(Cies):
6.331nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
234pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
