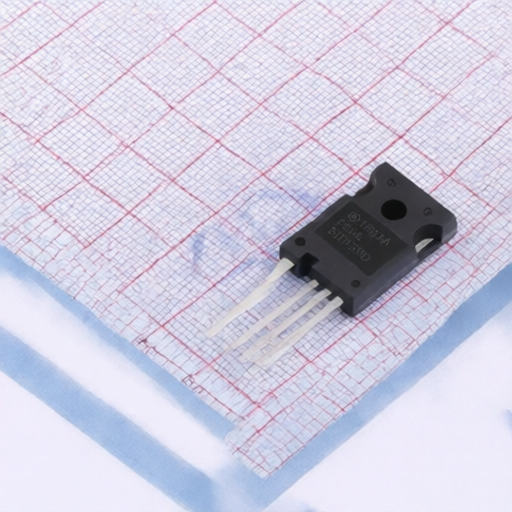

onsemi FGH4L50T65SQD
Manufacturer:
onsemi
Mfr. Part #:
FGH4L50T65SQD
Package:
TO-247-4LD
Customer #:
Key Attributes:
IGBT - Field Stop, Trench 650 V, 50 A
Description:
268W 650V FS (Field Stop) TO-247-4LD Single IGBTs RoHS
Datasheet:
onsemi FGH4L50T65SQD
Products Specifications
Manufacturer:
Package:
TO-247-4LD
Td(off):
158.4ns
Pd - Power Dissipation:
268W
Td(on):
22.4ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
10pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.6V@50mA
Operating Temperature:
-55℃~+175℃
Gate Charge(Qg):
92nC@15V
Reverse Recovery Time(trr):
25ns
Switching Energy(Eoff):
200uJ
Turn-On Energy (Eon):
280uJ
Input Capacitance(Cies):
3.07nF
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
84pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 450 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
