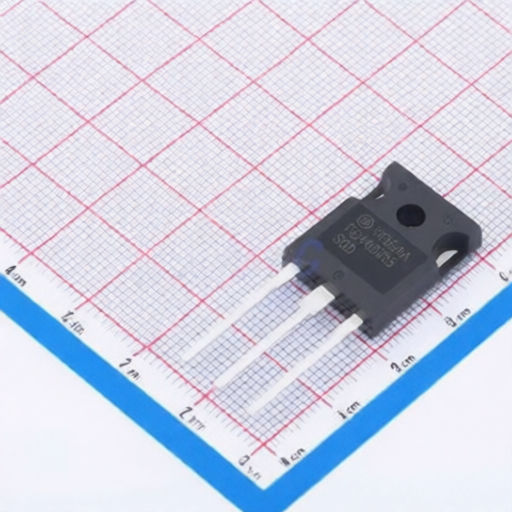

onsemi FGH40T65SQD-F155
Manufacturer:
onsemi
Mfr. Part #:
FGH40T65SQD-F155
Package:
TO-247-3LD
Customer #:
Key Attributes:
IGBT - Field Stop, Trench 650 V, 40 A
Description:
238W 650V FS (Field Stop) TO-247-3LD Single IGBTs RoHS
Datasheet:
onsemi FGH40T65SQD-F155
Products Specifications
Manufacturer:
Package:
TO-247-3LD
Pd - Power Dissipation:
238W
Td(off):
80ns
Td(on):
16.4ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
9pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.6V@40mA
Gate Charge(Qg):
80nC@15V
Operating Temperature:
-55℃~+175℃
Reverse Recovery Time(trr):
31.8ns
Switching Energy(Eoff):
52uJ
Turn-On Energy (Eon):
138uJ
Input Capacitance(Cies):
2.62nF
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
60pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
