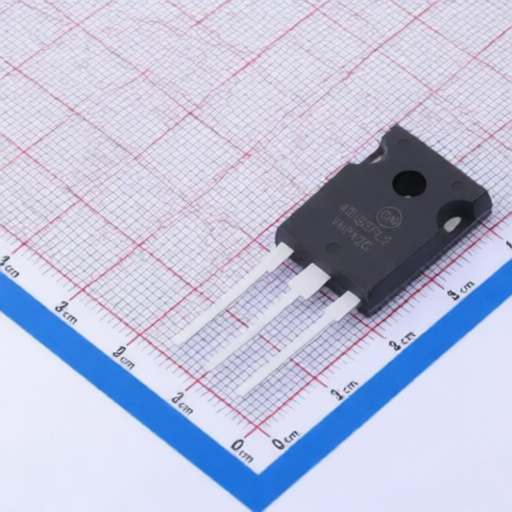

onsemi NGTB40N65FL2WG
Manufacturer:
onsemi
Mfr. Part #:
NGTB40N65FL2WG
Package:
TO-247
Customer #:
Key Attributes:
IGBT - Field Stop II
Description:
366W 650V FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
onsemi NGTB40N65FL2WG
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
366W
Td(off):
177ns
Td(on):
84ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
115pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@0.65mA
Gate Charge(Qg):
170nC@15V
Reverse Recovery Time(trr):
172ns
Switching Energy(Eoff):
440uJ
Turn-On Energy (Eon):
970uJ
Input Capacitance(Cies):
4.06nF
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
179pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
