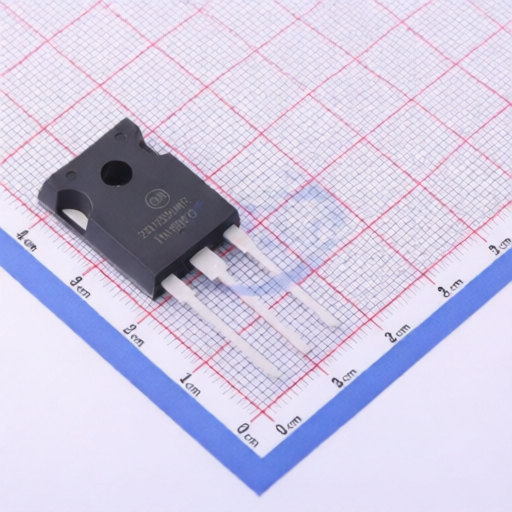

onsemi NGTB20N135IHRWG
Manufacturer:
onsemi
Mfr. Part #:
NGTB20N135IHRWG
Package:
TO-247
Customer #:
Key Attributes:
IGBT 1.35kV 40A TO-247
Description:
IGBT FS (Field Stop) 1.35kV 40A 394W Through Hole TO-247
Datasheet:
onsemi NGTB20N135IHRWG
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
245ns
Pd - Power Dissipation:
394W
Collector-Emitter Breakdown Voltage (Vces):
1.35kV
Reverse Transfer Capacitance (Cres):
100pF
Input Capacitance(Cies):
5.29nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
234nC
Operating Temperature:
-40℃~+175℃
Pulsed Current- Forward(Ifm):
120A
Output Capacitance(Coes):
124pF
Switching Energy(Eoff):
600uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
