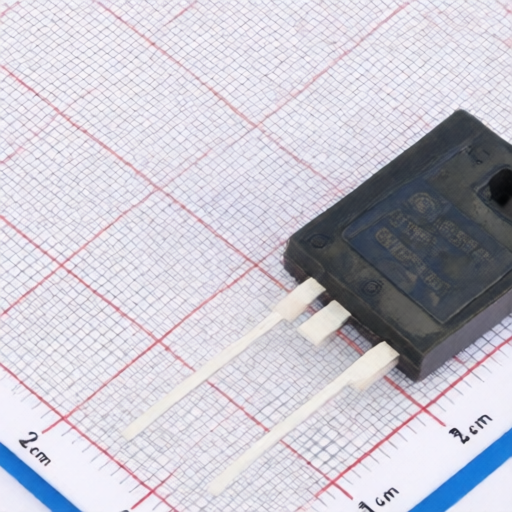

onsemi AFGHL75T65SQDT
Manufacturer:
onsemi
Mfr. Part #:
AFGHL75T65SQDT
Package:
TO-247-3L
Customer #:
Key Attributes:
Field Stop Trench IGBT 650 V, 75 A
Description:
375W 650V TO-247-3L Single IGBTs RoHS
Datasheet:
onsemi AFGHL75T65SQDT
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
106ns
Pd - Power Dissipation:
375W
Td(on):
24ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
13pF
Input Capacitance(Cies):
4.617nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.4V@75mA
Gate Charge(Qg):
136nC@15V
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
152pF
Reverse Recovery Time(trr):
75ns
Switching Energy(Eoff):
1.14mJ
Turn-On Energy (Eon):
2.12mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 450 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
