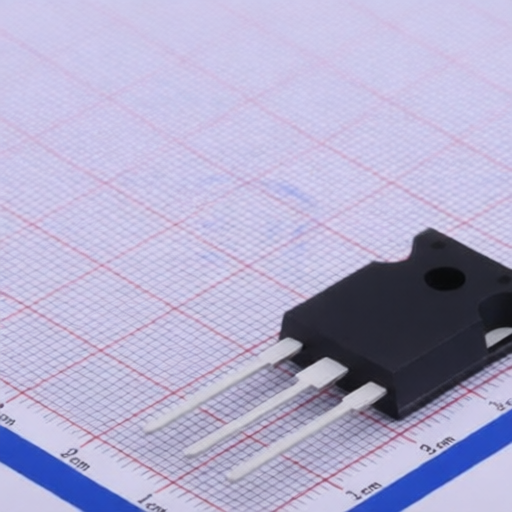

onsemi NGTB40N120FL2WG
Manufacturer:
onsemi
Mfr. Part #:
NGTB40N120FL2WG
Package:
TO-247
Customer #:
Key Attributes:
IGBT - Field Stop II
Description:
267W 1.2kV TO-247 Single IGBTs RoHS
Datasheet:
onsemi NGTB40N120FL2WG
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
286ns
Pd - Power Dissipation:
267W
Td(on):
116ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
140pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@400uA
Operating Temperature:
-55℃~+175℃
Gate Charge(Qg):
315nC@15V
Reverse Recovery Time(trr):
240ns
Switching Energy(Eoff):
1.1mJ
Turn-On Energy (Eon):
3.4mJ
Input Capacitance(Cies):
7.385nF
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
230pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
