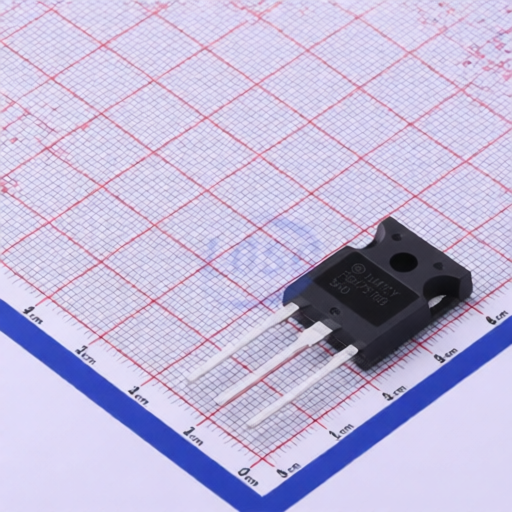

onsemi FGH75T65SHD-F155
Manufacturer:
onsemi
Mfr. Part #:
FGH75T65SHD-F155
Package:
TO-247-G03
Customer #:
Key Attributes:
IGBT 650V 150A TO-247-G03
Description:
IGBT FS (Field Stop) 650V 150A 455W Through Hole TO-247-G03
Datasheet:
onsemi FGH75T65SHD-F155
Products Specifications
Manufacturer:
Package:
TO-247-G03
Td(off):
80ns
Pd - Power Dissipation:
455W
Td(on):
28ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
43pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@75mA
Gate Charge(Qg):
123nC
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
43.4ns
Switching Energy(Eoff):
720uJ
Turn-On Energy (Eon):
2.4mJ
Input Capacitance(Cies):
3.68nF
Pulsed Current- Forward(Ifm):
225A
Output Capacitance(Coes):
179pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
