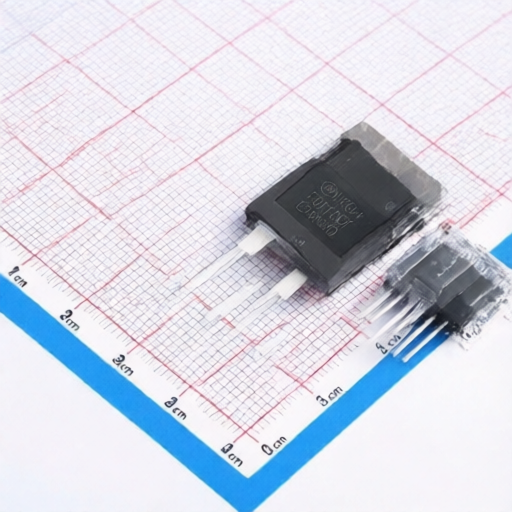

onsemi FGY100T120RWD
Manufacturer:
onsemi
Mfr. Part #:
FGY100T120RWD
Package:
TO-247-3
Customer #:
Key Attributes:
N-Channel, Field Stop Vll (FS7) IGBT
Description:
1.071kW 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi FGY100T120RWD
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
1.071kW
Td(off):
364ns
Td(on):
80ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
44.2pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.9V@100mA
Gate Charge(Qg):
427nC@15V
Reverse Recovery Time(trr):
256ns
Switching Energy(Eoff):
7.05mJ
Turn-On Energy (Eon):
8.13mJ
Input Capacitance(Cies):
12.2nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
392pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
