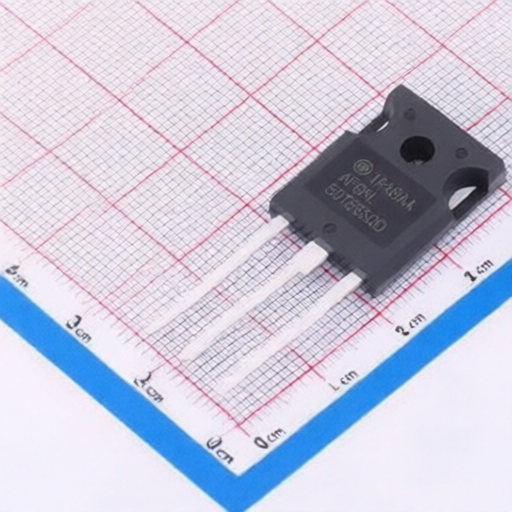

onsemi AFGHL50T65SQD
Manufacturer:
onsemi
Mfr. Part #:
AFGHL50T65SQD
Package:
TO-247-3L
Customer #:
Key Attributes:
Field Stop Trench IGBT
Description:
268W 650V FS (Field Stop) TO-247-3L Single IGBTs RoHS
Datasheet:
onsemi AFGHL50T65SQD
Products Specifications
Manufacturer:
Package:
TO-247-3L
Pd - Power Dissipation:
268W
Td(off):
81ns
Td(on):
20ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
11pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.4V@50mA
Gate Charge(Qg):
102nC@15V
Operating Temperature:
-55℃~+175℃
Reverse Recovery Time(trr):
30ns
Switching Energy(Eoff):
460uJ
Turn-On Energy (Eon):
950uJ
Input Capacitance(Cies):
3.258nF
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
85pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
