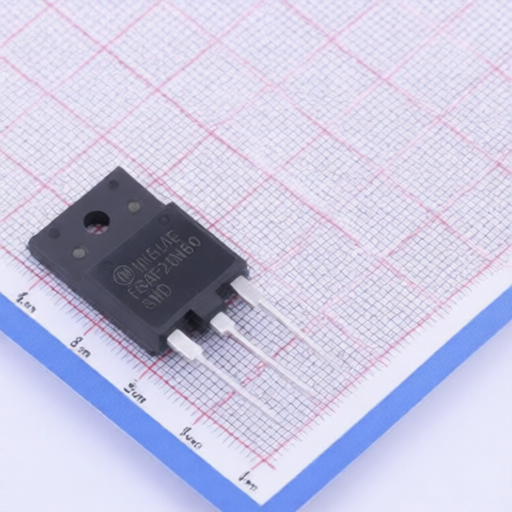

onsemi FGAF20N60SMD
Manufacturer:
onsemi
Mfr. Part #:
FGAF20N60SMD
Package:
TO-3PF
Customer #:
Key Attributes:
IGBT 600V 40A TO-3PF
Description:
IGBT FS (Field Stop) 600V 40A 75W Through Hole TO-3PF
Datasheet:
onsemi FGAF20N60SMD
Products Specifications
Manufacturer:
Package:
TO-3PF
Td(off):
91ns
Pd - Power Dissipation:
75W
Td(on):
12ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
30pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6V@250uA
Gate Charge(Qg):
64nC
Operating Temperature:
-55℃~+175℃
Reverse Recovery Time(trr):
26.7ns
Switching Energy(Eoff):
187uJ
Turn-On Energy (Eon):
452uJ
Input Capacitance(Cies):
925pF
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
89pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
