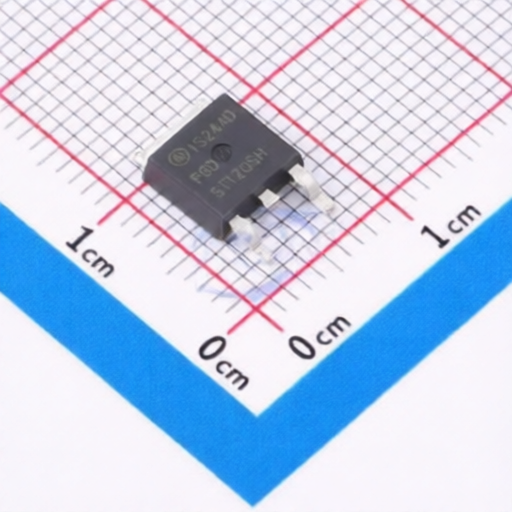

onsemi FGD5T120SH
Manufacturer:
onsemi
Mfr. Part #:
FGD5T120SH
Package:
TO-252
Customer #:
Key Attributes:
IGBT 1.2kV 10A TO-252
Description:
IGBT FS (Field Stop) 1.2kV 10A 69W Surface Mount TO-252
Datasheet:
onsemi FGD5T120SH
Products Specifications
Manufacturer:
Package:
TO-252
Td(off):
24.8ns
Pd - Power Dissipation:
69W
Td(on):
4.8ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
2pF
Input Capacitance(Cies):
209pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.5V@5mA
Gate Charge(Qg):
6.7nC
Operating Temperature:
-55℃~+150℃@(Tj)
Output Capacitance(Coes):
11pF
Switching Energy(Eoff):
94uJ
Turn-On Energy (Eon):
247uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
