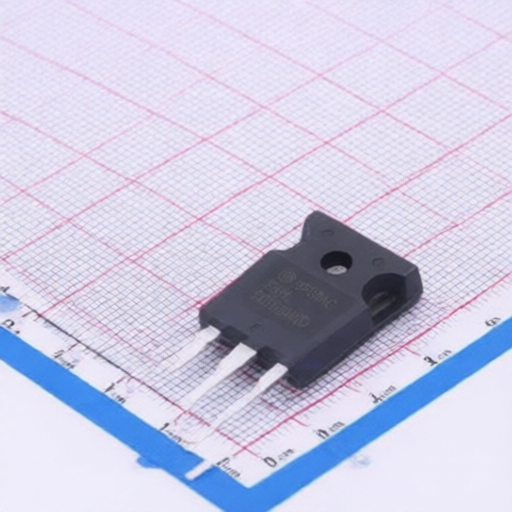

onsemi FGHL50T65MQD
Manufacturer:
onsemi
Mfr. Part #:
FGHL50T65MQD
Package:
TO-247-3L
Customer #:
Key Attributes:
Field Stop Trench IGBT 650 V, 50 A
Description:
268W 650V FS (Field Stop) TO-247-3L Single IGBTs RoHS
Datasheet:
onsemi FGHL50T65MQD
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
120ns
Pd - Power Dissipation:
268W
Td(on):
21ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
10pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3V@50mA
Operating Temperature:
-55℃~+175℃
Gate Charge(Qg):
94nC@15V
Reverse Recovery Time(trr):
32ns
Switching Energy(Eoff):
310uJ
Turn-On Energy (Eon):
410uJ
Input Capacitance(Cies):
3.226nF
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
85pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 450 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
