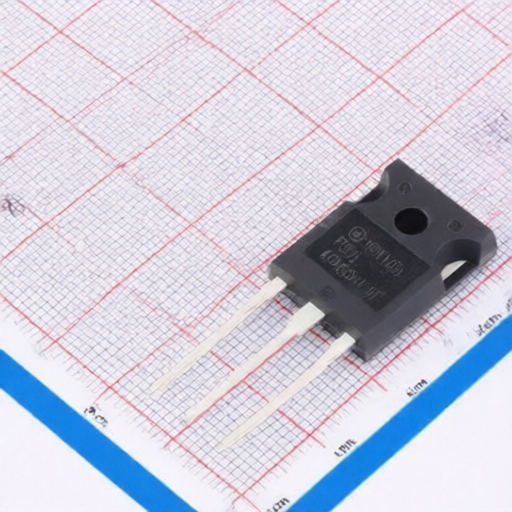

onsemi FGHL40T65MQDT
Manufacturer:
onsemi
Mfr. Part #:
FGHL40T65MQDT
Package:
TO-247-3LD
Customer #:
Description:
238W 650V FS (Field Stop) TO-247-3LD Single IGBTs RoHS
Datasheet:
onsemi FGHL40T65MQDT
Products Specifications
Manufacturer:
Package:
TO-247-3LD
Td(off):
75ns
Pd - Power Dissipation:
238W
Td(on):
18ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
9pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3V@40mA
Gate Charge(Qg):
80nC@15V
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
86ns
Switching Energy(Eoff):
490uJ
Turn-On Energy (Eon):
880uJ
Input Capacitance(Cies):
2.68nF
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
80pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
