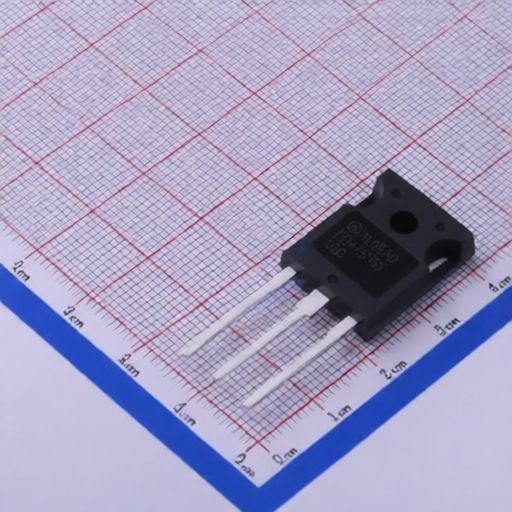

onsemi FGH75T65SQD-F155
Manufacturer:
onsemi
Mfr. Part #:
FGH75T65SQD-F155
Package:
TO-247-3
Customer #:
Description:
375W 650V FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi FGH75T65SQD-F155
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
114ns
Pd - Power Dissipation:
375W
Td(on):
26ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
14pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.6V@75mA
Operating Temperature:
-55℃~+175℃
Gate Charge(Qg):
128nC@15V
Reverse Recovery Time(trr):
43ns
Switching Energy(Eoff):
181uJ
Turn-On Energy (Eon):
746uJ
Input Capacitance(Cies):
4.845nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
155pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
