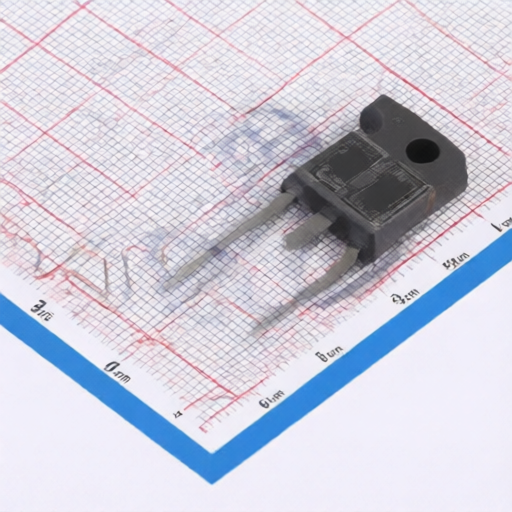

onsemi AFGHL75T65SQ
Manufacturer:
onsemi
Mfr. Part #:
AFGHL75T65SQ
Package:
TO-247-3L
Customer #:
Key Attributes:
Field Stop Trench IGBT
Description:
375W 650V TO-247-3L Single IGBTs RoHS
Datasheet:
onsemi AFGHL75T65SQ
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
106ns
Pd - Power Dissipation:
375W
Td(on):
23ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
11.2pF
Input Capacitance(Cies):
4.574nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.4V@75mA
Gate Charge(Qg):
139nC@15V
Output Capacitance(Coes):
289.4pF
Switching Energy(Eoff):
210uJ
Turn-On Energy (Eon):
610uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
