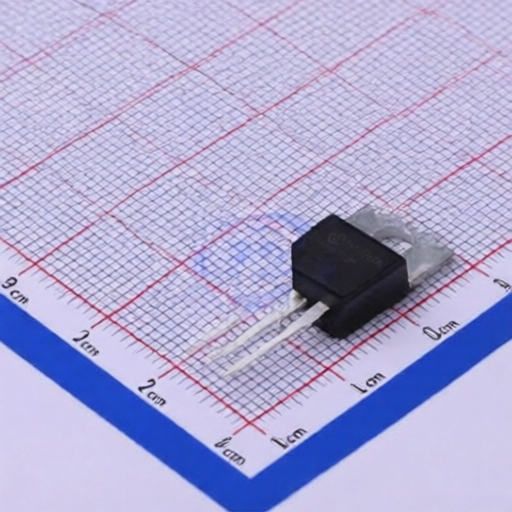

onsemi ISL9V3040P3
Manufacturer:
onsemi
Mfr. Part #:
ISL9V3040P3
Package:
TO-220
Customer #:
Key Attributes:
IGBT 430V 21A TO-220
Description:
IGBT 430V 21A 150W Through Hole TO-220
Datasheet:
onsemi ISL9V3040P3
Products Specifications
Manufacturer:
Package:
TO-220
Td(off):
4.8us
Pd - Power Dissipation:
150W
Td(on):
700ns
Collector-Emitter Breakdown Voltage (Vces):
430V
Input Capacitance(Cies):
-
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
1.3V@1mA
Gate Charge(Qg):
17nC
Operating Temperature:
-40℃~+175℃@(Tj)
Turn-On Energy (Eon):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
