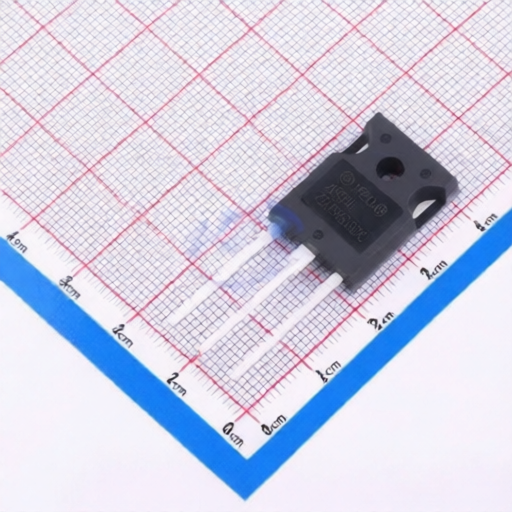

onsemi AFGHL75T65SQDC
Manufacturer:
onsemi
Mfr. Part #:
AFGHL75T65SQDC
Package:
TO-247-3L
Customer #:
Key Attributes:
IGBT with SiC copack diode
Description:
375W 650V FS (Field Stop) TO-247-3L Single IGBTs RoHS
Datasheet:
onsemi AFGHL75T65SQDC
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
107ns
Pd - Power Dissipation:
375W
Td(on):
24ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
11.2pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.4V@75mA
Gate Charge(Qg):
139nC@15V
Operating Temperature:
-55℃~+175℃@(Tj)
Switching Energy(Eoff):
1.11mJ
Turn-On Energy (Eon):
1.68mJ
Input Capacitance(Cies):
4.574nF
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
289.4pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
