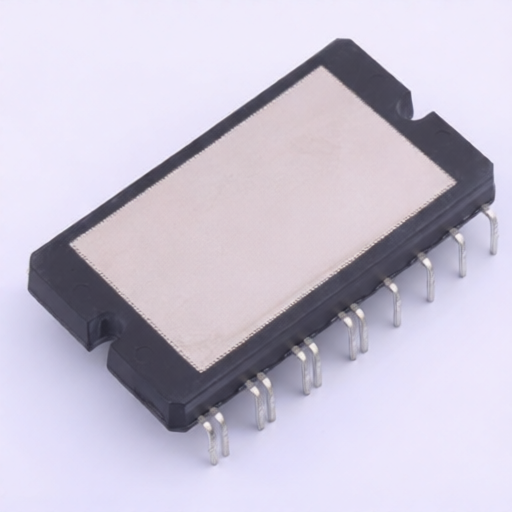

onsemi NXH25C120L2C2SG
Manufacturer:
onsemi
Mfr. Part #:
NXH25C120L2C2SG
Package:
DIP-26
Customer #:
Description:
1.2kV DIP-26 Single IGBTs RoHS
Datasheet:
onsemi NXH25C120L2C2SG
Products Specifications
Manufacturer:
Package:
DIP-26
Td(off):
235ns
Td(on):
68ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
117pF
Input Capacitance(Cies):
6.2nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.8V@3.04mA
Operating Temperature:
-40℃~+150℃
Pulsed Current- Forward(Ifm):
370A
Switching Energy(Eoff):
720uJ
Turn-On Energy (Eon):
2.2mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
