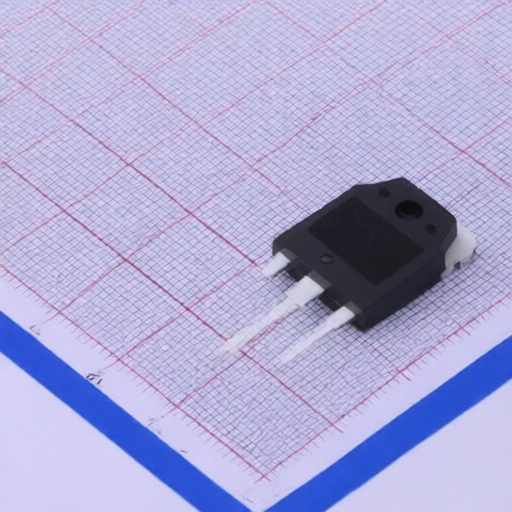

onsemi FGA60N65SMD
Manufacturer:
onsemi
Mfr. Part #:
FGA60N65SMD
Package:
TO-3PN
Customer #:
Description:
650V FS (Field Stop) TO-3PN Single IGBTs RoHS
Datasheet:
onsemi FGA60N65SMD
Products Specifications
Manufacturer:
Package:
TO-3PN
Td(off):
104ns
Td(on):
18ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
85pF
Input Capacitance(Cies):
2.915nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6V@250uA
Gate Charge(Qg):
189nC@15V
Pulsed Current- Forward(Ifm):
180A
Output Capacitance(Coes):
270pF
Reverse Recovery Time(trr):
47ns
Switching Energy(Eoff):
450uJ
Turn-On Energy (Eon):
1.54mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
