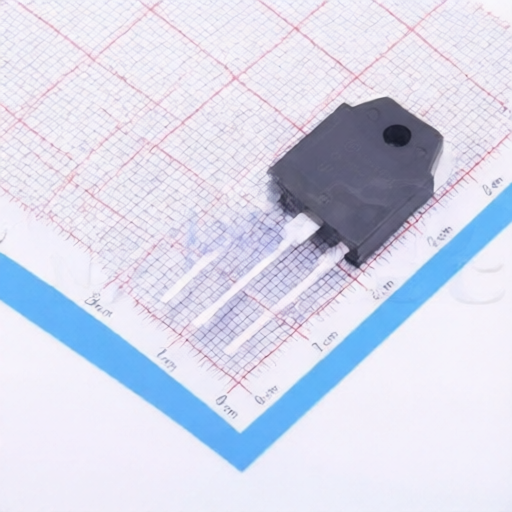

onsemi SGH40N60UFDTU
Manufacturer:
onsemi
Mfr. Part #:
SGH40N60UFDTU
Package:
TO-3P-3
Customer #:
Key Attributes:
Ultra-Fast IGBT
Description:
160W 600V TO-3P-3 Single IGBTs RoHS
Datasheet:
onsemi SGH40N60UFDTU
Products Specifications
Manufacturer:
Package:
TO-3P-3
Pd - Power Dissipation:
160W
Td(off):
65ns
Td(on):
15ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
50pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@20mA
Gate Charge(Qg):
97nC@15V
Operating Temperature:
-55℃~+150℃
Reverse Recovery Time(trr):
42ns
Switching Energy(Eoff):
200uJ
Turn-On Energy (Eon):
160uJ
Input Capacitance(Cies):
1.43nF
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
170pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
