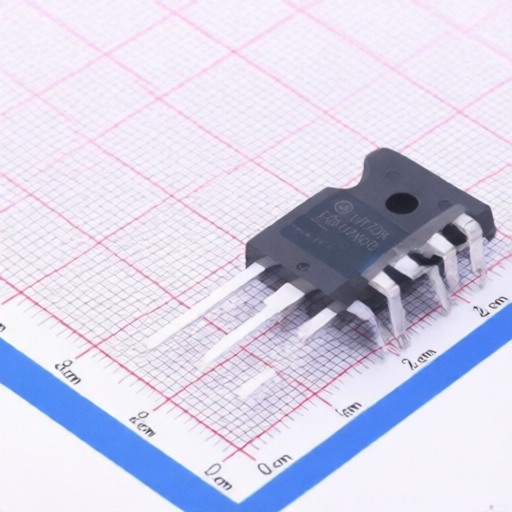

onsemi FGH40N60SMD
Manufacturer:
onsemi
Mfr. Part #:
FGH40N60SMD
Package:
TO-247
Customer #:
Key Attributes:
IGBT 600V 80A TO-247
Description:
IGBT FS (Field Stop) 600V 80A 349W Through Hole TO-247
Datasheet:
onsemi FGH40N60SMD
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
92ns
Pd - Power Dissipation:
349W
Td(on):
12ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
50pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@250uA
Gate Charge(Qg):
119nC@15V
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
36ns
Switching Energy(Eoff):
260uJ
Turn-On Energy (Eon):
870uJ
Input Capacitance(Cies):
1.88nF
Pulsed Current- Forward(Ifm):
120A
Output Capacitance(Coes):
180pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
