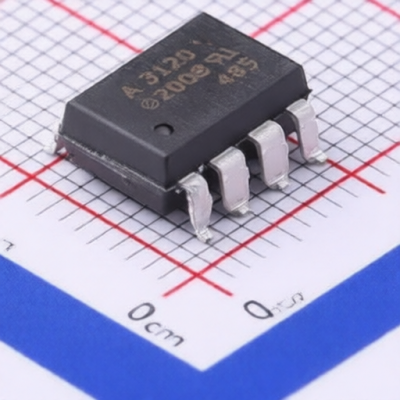

Broadcom HCPL-3120-560E

Broadcom HCPL-3120-560E

Name: Broadcom HCPL-3120-560E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: HCPL-3120-560E

Package: SOP-8-2.54mm

Customer #:

Key Attributes: DC Input 1 Channel Isolation Voltage (rms): 3750V

Description: 2.5A 5V 15V~30V 1.5V DC SOP-8-2.54mm Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SOP-8-2.54mm

Power Dissipation:

295mW

Output Current:

2.5A

Data Rate:

Operating Temperature:

-40℃~+100℃

Isolation voltage(Vrms):

3.75kV

Reverse Voltage:

Voltage - Supply:

15V~30V

Forward Current(If):

16mA

CMTI(kV/us):

35kV/us

Number of Channels:

Input threshold current:

5mA

Propagation Delay(tpd):

500ns;500ns

Voltage - Forward(Vf):

1.5V

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece
