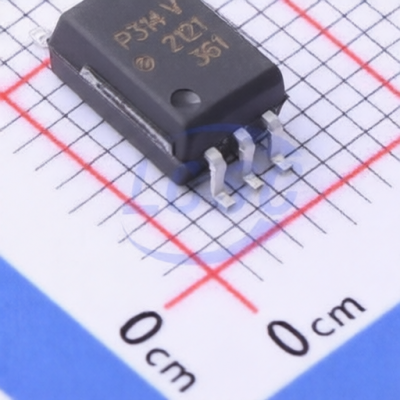

Broadcom ACPL-P314-560E

Broadcom ACPL-P314-560E

Name: Broadcom ACPL-P314-560E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: ACPL-P314-560E

Package: SO-6-6.8mm

Customer #:

Description: 600mA 5V 10V~30V 1.5V DC SO-6-6.8mm Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SO-6-6.8mm

Power Dissipation:

250mW

Output Current:

600mA

Data Rate:

Operating Temperature:

-40℃~+100℃

Isolation voltage(Vrms):

3.75kV

Reverse Voltage:

Voltage - Supply:

10V~30V

Forward Current(If):

12mA

CMTI(kV/us):

25kV/us

Number of Channels:

Propagation Delay(tpd):

700ns;700ns

Input threshold current:

7mA

Voltage - Forward(Vf):

1.5V

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece
