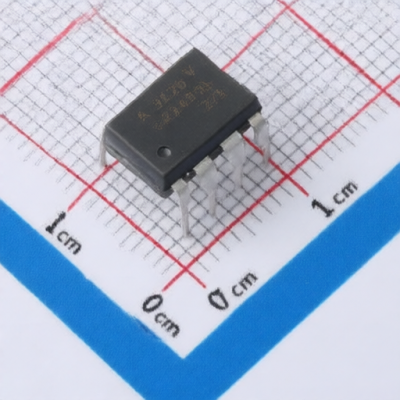

Broadcom HCPL-3120-060E
Manufacturer:
Broadcom
Mfr. Part #:
HCPL-3120-060E
Package:
DIP-8
Customer #:
Key Attributes:
2.5 Amp Output Current IGBT Gate Drive Optocoupler
Description:
2.5A 5V 15V~30V 1.5V DC DIP-8 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
DIP-8
Power Dissipation:
295mW
Output Current:
2.5A
Data Rate:
-
Operating Temperature:
-40℃~+100℃
Isolation voltage(Vrms):
3.75kV
Reverse Voltage:
5V
Voltage - Supply:
15V~30V
Forward Current(If):
25mA
CMTI(kV/us):
35kV/us
Number of Channels:
1
Input threshold current:
5mA
Propagation Delay(tpd):
500ns;500ns
Voltage - Forward(Vf):
1.5V
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
