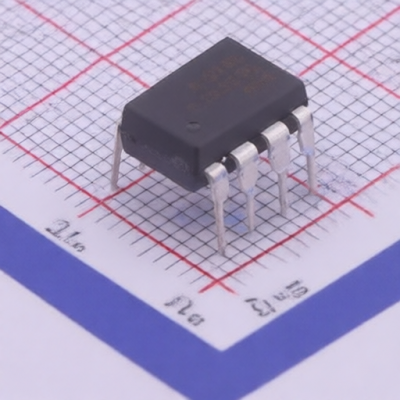

Broadcom HCPL-3180-000E
Manufacturer:
Broadcom
Mfr. Part #:
HCPL-3180-000E
Package:
DIP-8
Customer #:
Key Attributes:
DC Input 1 Channel Isolation Voltage (rms): 3750V
Description:
2.5A 5V 10V~20V 1.5V DC DIP-8 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
DIP-8
Power Dissipation:
295mW
Output Current:
2.5A
Data Rate:
-
Operating Temperature:
-40℃~+100℃
Isolation voltage(Vrms):
3.75kV
Reverse Voltage:
5V
Voltage - Supply:
10V~20V
Forward Current(If):
16mA
CMTI(kV/us):
10kV/us
Number of Channels:
1
Propagation Delay(tpd):
200ns;200ns
Input threshold current:
8mA
Voltage - Forward(Vf):
1.5V
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Broadcom
3882 Products
Broadcom Limited is a global leader and innovator in semiconductor solutions for wired and wireless communications. Broadcom products seamlessly deliver voice, video, data and multimedia connectivity in the home, office and mobile environments. With the industry's broadest portfolio of state-of-the-art system-on-a-chip and embedded software solutions, Broadcom is changing the world by Connecting everything®.
