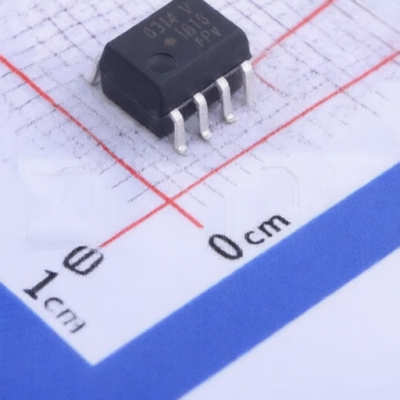

Broadcom HCPL-0314-560E
Manufacturer:
Broadcom
Mfr. Part #:
HCPL-0314-560E
Package:
SO-8
Customer #:
Key Attributes:
0.4 Amp Output Current IGBT Gate Drive Optocoupler
Description:
5V 10V~30V 1.5V DC SO-8 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SO-8
Operating Temperature:
-40℃~+100℃
Propagation Delay(tpd):
700ns;700ns
Input threshold current:
7mA
Isolation voltage(Vrms):
3.75kV
Reverse Voltage:
5V
Voltage - Supply:
10V~30V
Forward Current(If):
12mA
Voltage - Forward(Vf):
1.5V
CMTI(kV/us):
35kV/us
Number of Channels:
1
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
