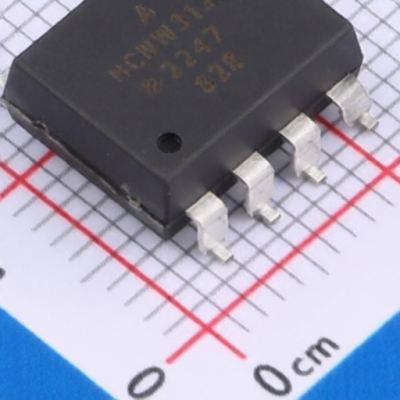

Broadcom HCNW3120-300E

Broadcom HCNW3120-300E

Name: Broadcom HCNW3120-300E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: HCNW3120-300E

Package: SMD-8P

Customer #:

Key Attributes: 2.5 Amp Output Current IGBT Gate Drive Optocoupler

Description: 2.5A 5V 15V~30V 1.95V DC SMD-8P Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SMD-8P

Power Dissipation:

295mW

Output Current:

2.5A

Data Rate:

Operating Temperature:

-40℃~+100℃

Isolation voltage(Vrms):

5kV

Reverse Voltage:

Voltage - Supply:

15V~30V

Forward Current(If):

16mA

CMTI(kV/us):

35kV/us

Number of Channels:

Propagation Delay(tpd):

500ns;500ns

Input threshold current:

8mA

Voltage - Forward(Vf):

1.95V

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	42
Sales Unit	Piece
