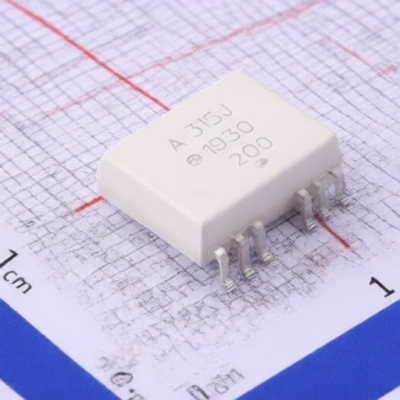

Broadcom HCPL-315J-500E

Broadcom HCPL-315J-500E

Name: Broadcom HCPL-315J-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: HCPL-315J-500E

Package: SOIC-16-300mil

Customer #:

Key Attributes: 0.5 Amp Output Current IGBT Gate Drive Optocoupler

Description: 500mA 5V 15V~30V 1.95V DC SOIC-16-300mil Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SOIC-16-300mil

Power Dissipation:

295mW

Output Current:

500mA

Operating Temperature:

-40℃~+100℃

Input threshold current:

6.4mA

Propagation Delay(tpd):

500ns;500ns

Isolation voltage(Vrms):

5kV

Reverse Voltage:

Voltage - Supply:

15V~30V

Forward Current(If):

16mA

Voltage - Forward(Vf):

1.95V

CMTI(kV/us):

30kV/us

Number of Channels:

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	850
Sales Unit	Piece
