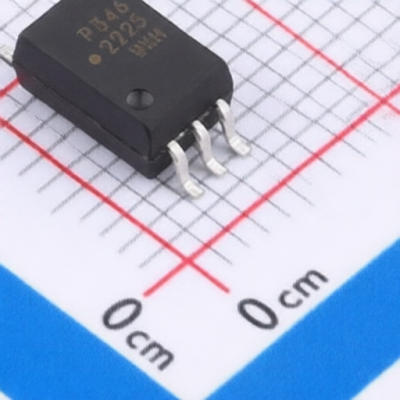

Broadcom ACPL-P346-000E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-P346-000E
Package:
SO-6
Customer #:
Key Attributes:
2.5Amp Output Current Power & SiC MOSFET Gate Drive Optocoupler with Rail-to-Rail Output Voltage in Stretched S06
Description:
2A 5V 10V~20V 1.55V DC SO-6 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SO-6
Power Dissipation:
550mW
Output Current:
2A
Data Rate:
-
Operating Temperature:
-40℃~+105℃
Isolation voltage(Vrms):
3.75kV
Reverse Voltage:
5V
Voltage - Supply:
10V~20V
Forward Current(If):
11mA
CMTI(kV/us):
70kV/us
Number of Channels:
1
Propagation Delay(tpd):
120ns;120ns
Input threshold current:
4mA
Voltage - Forward(Vf):
1.55V
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
