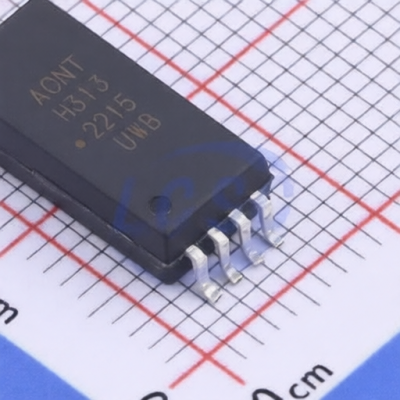

Broadcom ACNT-H313-500E
Manufacturer:
Broadcom
Mfr. Part #:
ACNT-H313-500E
Package:
SO-8
Customer #:
Key Attributes:
IGBT Gate Drive Optocoupler
Description:
2.5A 5V 15V~30V 1.45V DC SO-8 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SO-8
Power Dissipation:
850mW
Output Current:
2.5A
Data Rate:
-
Operating Temperature:
-40℃~+105℃
Isolation voltage(Vrms):
7.5kV
Reverse Voltage:
5V
Voltage - Supply:
15V~30V
Forward Current(If):
12mA
CMTI(kV/us):
50kV/us
Number of Channels:
1
Propagation Delay(tpd):
500ns;500ns
Input threshold current:
5mA
Voltage - Forward(Vf):
1.45V
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
