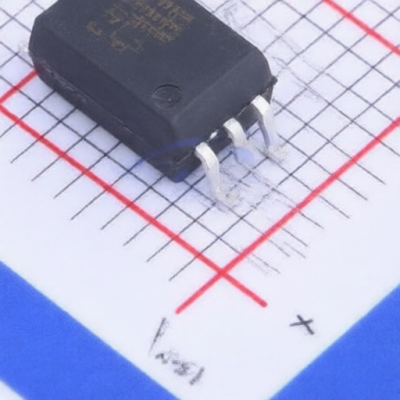

Broadcom ACPL-P346-560E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-P346-560E
Package:
SOP-6-6.8mm
Customer #:
Key Attributes:
2.5-Amp Output Current Power, GaN and SiC MOSFET Gate Drive Optocoupler with Rail-to-Rail Output
Description:
2.5A 5V 10V~20V 1.55V DC SOP-6-6.8mm Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOP-6-6.8mm
Power Dissipation:
550mW
Output Current:
2.5A
Operating Temperature:
-40℃~+105℃
Propagation Delay(tpd):
120ns;120ns
Input threshold current:
4mA
Isolation voltage(Vrms):
3.75kV
Reverse Voltage:
5V
Voltage - Supply:
10V~20V
Forward Current(If):
11mA
Voltage - Forward(Vf):
1.55V
CMTI(kV/us):
100kV/us
Number of Channels:
1
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
