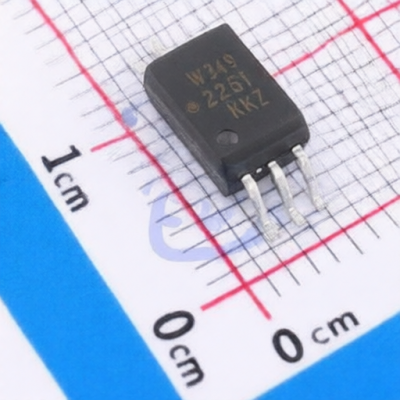

Broadcom ACPL-W349-500E

Broadcom ACPL-W349-500E

Name: Broadcom ACPL-W349-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: ACPL-W349-500E

Package: SO-6-6.8mm

Customer #:

Key Attributes: DC Input 1 Channel Isolation Voltage (rms): 5000V

Description: 2.5A 5V 15V~30V 1.55V DC SO-6-6.8mm Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Broadcom

Package:

SO-6-6.8mm

Power Dissipation:

550mW

Output Current:

2.5A

Data Rate:

Operating Temperature:

-40℃~+105℃

Isolation voltage(Vrms):

5kV

Reverse Voltage:

Voltage - Supply:

15V~30V

Forward Current(If):

11mA

CMTI(kV/us):

100kV/us

Number of Channels:

Propagation Delay(tpd):

110ns;110ns

Input threshold current:

4mA

Voltage - Forward(Vf):

1.55V

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece
