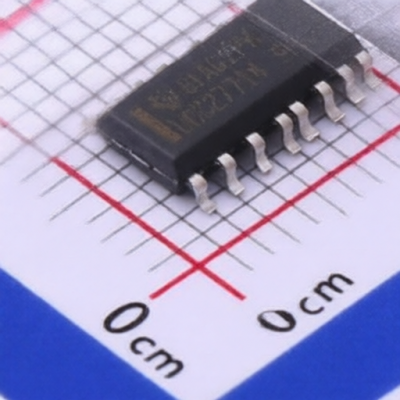

TI UCC27714DR
Manufacturer:
TI
Mfr. Part #:
UCC27714DR
Package:
SOIC-14
Customer #:
Key Attributes:
High-Speed, 600-V High-Side Low-Side Gate Driver with 4-A Peak Output
Description:
10V~17V 4A SOIC-14 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOIC-14
Input Logic Level - Low:
1.2V~2.1V
Peak Output Current(Sink):
4A
Quiescent Current(Iq):
750uA
Voltage - Supply:
10V~17V
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Half-Bridge
Propagation Delay tpLH:
125ns
Propagation Delay tpHL:
125ns
Rise Time:
15ns
Features:
Under Voltage Protection
Current - Output High(IOH):
4A
Fall Time:
15ns
Load Type:
MOSFET;IGBT
Input Logic Level - High:
1.7V~2.7V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
