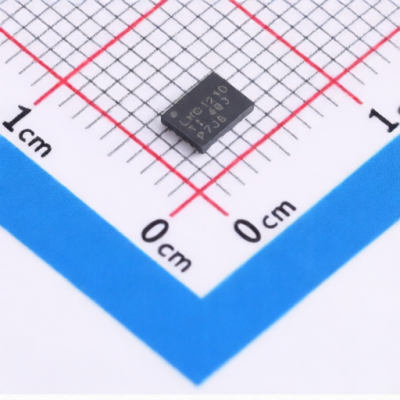

TI LMG1210RVRR
Manufacturer:
TI
Mfr. Part #:
LMG1210RVRR
Package:
WQFN-19-EP(3x4)
Customer #:
Key Attributes:
200V, 1.5A, 3A half-bridge MOSFET and GaNFET drivers with adjustable dead-time (suitable for applications with operating frequencies up to 50MHz)
Description:
Half-Bridge Gate Driver IC MOSFET WQFN-19-EP(3x4)
Products Specifications
Manufacturer:
Package:
WQFN-19-EP(3x4)
Input Logic Level - Low:
700mV~1.3V
Peak Output Current(Sink):
3A
Quiescent Current(Iq):
300uA
Voltage - Supply:
6V~18V
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Half-Bridge
Propagation Delay tpLH:
10ns
Propagation Delay tpHL:
10ns
Rise Time:
500ps
Features:
Under Voltage Protection;Over Temperature Protection
Fall Time:
2.3ns
Current - Output High(IOH):
1.5A
Load Type:
MOSFET
Input Logic Level - High:
1.7V~2.45V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
