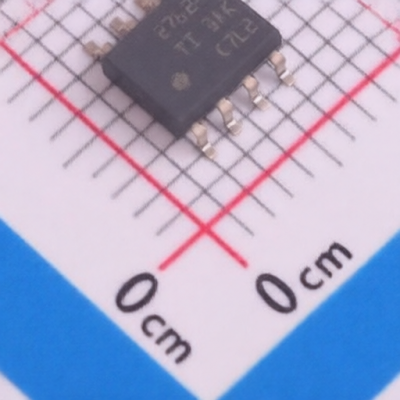

TI UCC27624QDRQ1
Manufacturer:
TI
Mfr. Part #:
UCC27624QDRQ1
Package:
SOIC-8
Customer #:
Key Attributes:
30-V, 5-A, Dual-Channel, Low-Side Gate Driver with -10-V Input Capability For Automotive Applications
Description:
4.5V~26V 5A SOIC-8 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOIC-8
Input Logic Level - Low:
800mV~1.2V
Peak Output Current(Sink):
5A
Quiescent Current(Iq):
300uA
Voltage - Supply:
4.5V~26V
Operating Temperature:
-40℃~+150℃
Driven Configuration:
Low Side
Propagation Delay tpLH:
17ns
Propagation Delay tpHL:
17ns
Rise Time:
6ns
Features:
Under Voltage Protection
Fall Time:
10ns
Current - Output High(IOH):
5A
Load Type:
MOSFET;IGBT
Input Logic Level - High:
1.8V~2.3V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
