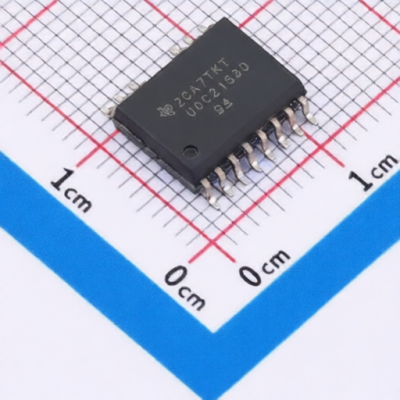

TI UCC21530DWK
Manufacturer:
TI
Mfr. Part #:
UCC21530DWK
Package:
SOIC-14
Customer #:
Key Attributes:
4A, 6A, 5.7 kVRMs Isolated Dual-Channel Gate Drivers with 3.3 mm Channel-to-Channel Spacing
Description:
2 SOIC-14 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOIC-14
Input Logic Level - Low:
0.8V~1.2V
Peak Output Current(Source):
4A
Voltage - Supply (Driver):
25V
Peak Output Current(Sink):
6A
Isolation voltage(Vrms):
5700
Quiescent Current(Iq):
2000uA
number of channels:
2
Load Type:
IGBT;MOSFET
Input Voltage (Vin):
3V~18V
Input Logic Level - High:
1.2V~2V
Operating Temperature:
-40℃~+150℃@(Tj)
Driven Configuration:
Low Side;High Side;Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 40 |
| Sales Unit | Piece |
