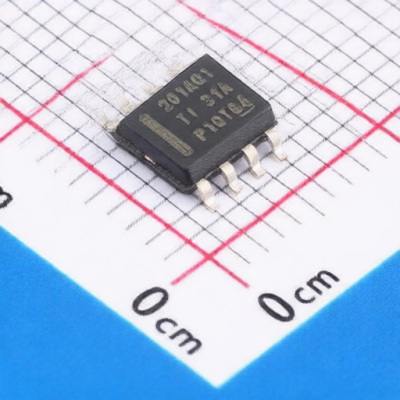

TI UCC27201AQDDARQ1
Manufacturer:
TI
Mfr. Part #:
UCC27201AQDDARQ1
Package:
SO-8
Customer #:
Key Attributes:
High-frequency high-side/low-side driver
Description:
Half-Bridge Gate Driver IC MOSFET SO-8
Products Specifications
Manufacturer:
Package:
SO-8
Input Logic Level - Low:
800mV~1.6V
Peak Output Current(Sink):
3A
Quiescent Current(Iq):
800uA
Voltage - Supply:
8V~17V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Half-Bridge
Propagation Delay tpLH:
45ns
Propagation Delay tpHL:
45ns
Rise Time:
8ns
Features:
Under Voltage Protection
Current - Output High(IOH):
3A
Fall Time:
7ns
Load Type:
MOSFET
Input Logic Level - High:
1.7V~2.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
