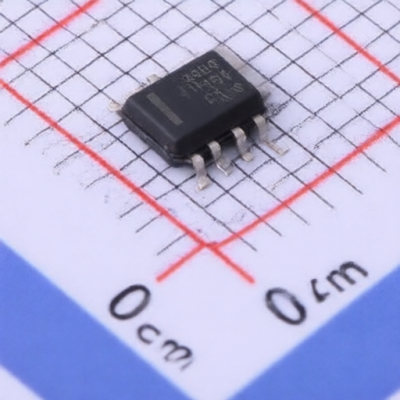

TI TPS2814DR
Manufacturer:
TI
Mfr. Part #:
TPS2814DR
Package:
SOIC-8
Customer #:
Key Attributes:
DUAL HIGH-SPEED MOSFET DRIVERS
Description:
2A 4V~14V SOIC-8 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOIC-8
Input Logic Level - Low:
1V~4.2V
Propagation Delay tpLH:
24ns
Propagation Delay tpHL:
25ns
Rise Time:
14ns
Peak Output Current(Sink):
2A
Current - Output High(IOH):
2A
Fall Time:
15ns
Quiescent Current(Iq):
200nA
Load Type:
MOSFET
Voltage - Supply:
4V~14V
Input Logic Level - High:
5.8V~9V
Driven Configuration:
-
Operating Temperature:
-40℃~+125℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
