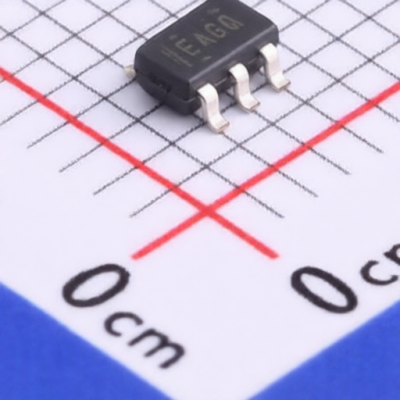

TI UCC27517AQDBVRQ1
Manufacturer:
TI
Mfr. Part #:
UCC27517AQDBVRQ1
Package:
SOT-23-5
Customer #:
Key Attributes:
Single-Channel High-Speed Low-Side Gate Driver with Negative Input Voltage Capability
Description:
4A 4.5V~18V SOT-23-5 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOT-23-5
Input Logic Level - Low:
1V~1.2V
Propagation Delay tpLH:
13ns
Propagation Delay tpHL:
13ns
Peak Output Current(Sink):
4A
Rise Time:
8ns
Features:
Under Voltage Protection
Current - Output High(IOH):
4A
Fall Time:
7ns
Load Type:
MOSFET;IGBT
Voltage - Supply:
4.5V~18V
Input Logic Level - High:
2.2V~2.4V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
