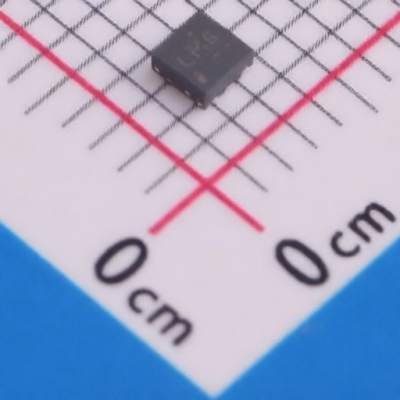

TI LMG1025QDEERQ1
Manufacturer:
TI
Mfr. Part #:
LMG1025QDEERQ1
Package:
WSON-6-EP(2x2)
Customer #:
Key Attributes:
Automotive Low Side GaN and MOSFET Driver For High Frequency and Narrow Pulse Applications
Description:
4.75V~5.25V 7A WSON-6-EP(2x2) Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
WSON-6-EP(2x2)
Input Logic Level - Low:
1.1V~1.8V
Peak Output Current(Sink):
5A
Quiescent Current(Iq):
75uA
Voltage - Supply:
4.75V~5.25V
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Low Side
Propagation Delay tpLH:
2.6ns
Propagation Delay tpHL:
2.9ns
Rise Time:
650ps
Features:
Under Voltage Protection;Over Temperature Protection
Fall Time:
850ps
Current - Output High(IOH):
7A
Load Type:
MOSFET
Input Logic Level - High:
1.7V~2.6V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
