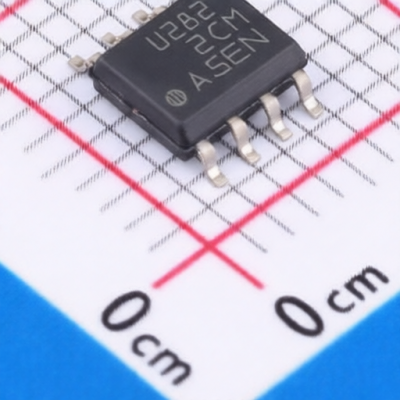

TI UCC27282DR
Manufacturer:
TI
Mfr. Part #:
UCC27282DR
Package:
SOIC-8
Customer #:
Key Attributes:
3A 120V half-bridge driver with transconductance protection and low switching losses
Description:
Half-Bridge Gate Driver IC MOSFET SOIC-8
Products Specifications
Manufacturer:
Package:
SOIC-8
Input Logic Level - Low:
900mV~1.3V
Peak Output Current(Sink):
3A
Quiescent Current(Iq):
300uA
Voltage - Supply:
5.5V~16V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Half-Bridge
Propagation Delay tpLH:
16ns
Propagation Delay tpHL:
16ns
Rise Time:
12ns
Features:
Under Voltage Protection
Fall Time:
10ns
Current - Output High(IOH):
3A
Load Type:
MOSFET
Input Logic Level - High:
1.9V~2.4V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
