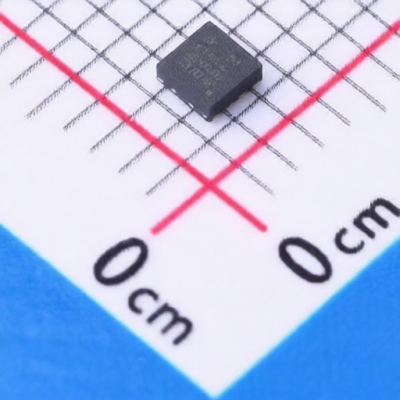

TI UCC27614DSGR
Manufacturer:
TI
Mfr. Part #:
UCC27614DSGR
Package:
WSON-8-EP(2x2)
Customer #:
Key Attributes:
Single-channel 30V, 10A low-side gate driver with -10V input capability
Description:
4.5V~26V WSON-8-EP(2x2) Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
WSON-8-EP(2x2)
Input Logic Level - Low:
1.2V
Propagation Delay tpLH:
17.5ns
Propagation Delay tpHL:
17.5ns
Rise Time:
6ns
Fall Time:
5.5ns
Features:
Under Voltage Protection
Quiescent Current(Iq):
500uA
Load Type:
MOSFET;IGBT
Voltage - Supply:
4.5V~26V
Input Logic Level - High:
1.8V
Operating Temperature:
-40℃~+150℃
Driven Configuration:
Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
