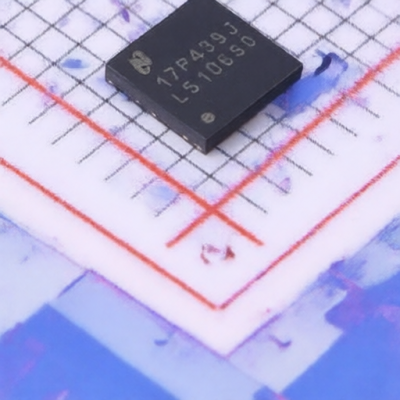

TI LM5106SD/NOPB
Manufacturer:
TI
Mfr. Part #:
LM5106SD/NOPB
Package:
WSON-10-EP(4x4)
Customer #:
Key Attributes:
Half-Bridge Gate Driver With Programmable Dead-Time
Description:
8V~14V 1.2A WSON-10-EP(4x4) Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
WSON-10-EP(4x4)
Input Logic Level - Low:
800mV~1.8V
Peak Output Current(Sink):
1.8A
Quiescent Current(Iq):
340uA
Voltage - Supply:
8V~14V
Driven Configuration:
Half-Bridge
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
520ns
Propagation Delay tpHL:
32ns
Rise Time:
15ns
Features:
Under Voltage Protection
Fall Time:
10ns
Current - Output High(IOH):
1.2A
Load Type:
MOSFET
Input Logic Level - High:
1.8V~2.2V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
