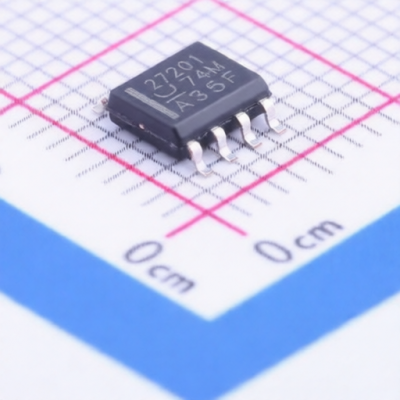

TI UCC27201DR
Manufacturer:
TI
Mfr. Part #:
UCC27201DR
Package:
SOIC-8
Customer #:
Key Attributes:
120-V Boot, 3-A Peak, High Frequency, High-Side and Low-Side Driver
Description:
3A 8V~17V SOIC-8 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOIC-8
Input Logic Level - Low:
800mV~1.6V
Rise Time:
8ns
Peak Output Current(Sink):
3A
Features:
Under Voltage Protection
Current - Output High(IOH):
3A
Fall Time:
7ns
Quiescent Current(Iq):
400uA
Load Type:
MOSFET
Voltage - Supply:
8V~17V
Input Logic Level - High:
1.7V~2.5V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
