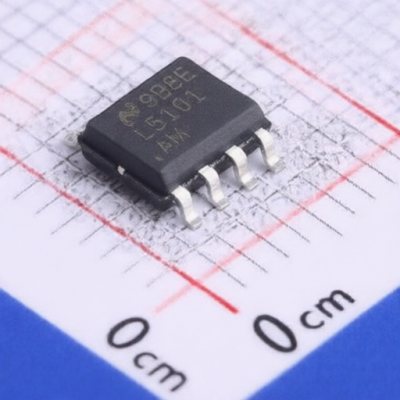

TI LM5101AMX/NOPB
Manufacturer:
TI
Mfr. Part #:
LM5101AMX/NOPB
Package:
SOIC-8
Customer #:
Key Attributes:
High-Voltage Gate Drivers for Driving High-Side and Low-Side N-Channel MOSFETs
Description:
3A 9V~14V SOIC-8 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOIC-8
Propagation Delay tpLH:
26ns
Propagation Delay tpHL:
22ns
Rise Time:
430ns
Peak Output Current(Sink):
3A
Features:
Under Voltage Protection
Current - Output High(IOH):
3A
Fall Time:
8ns
Quiescent Current(Iq):
400uA
Load Type:
MOSFET
Voltage - Supply:
9V~14V
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
